The VisionPort™ System

Information for Healthcare Professionals

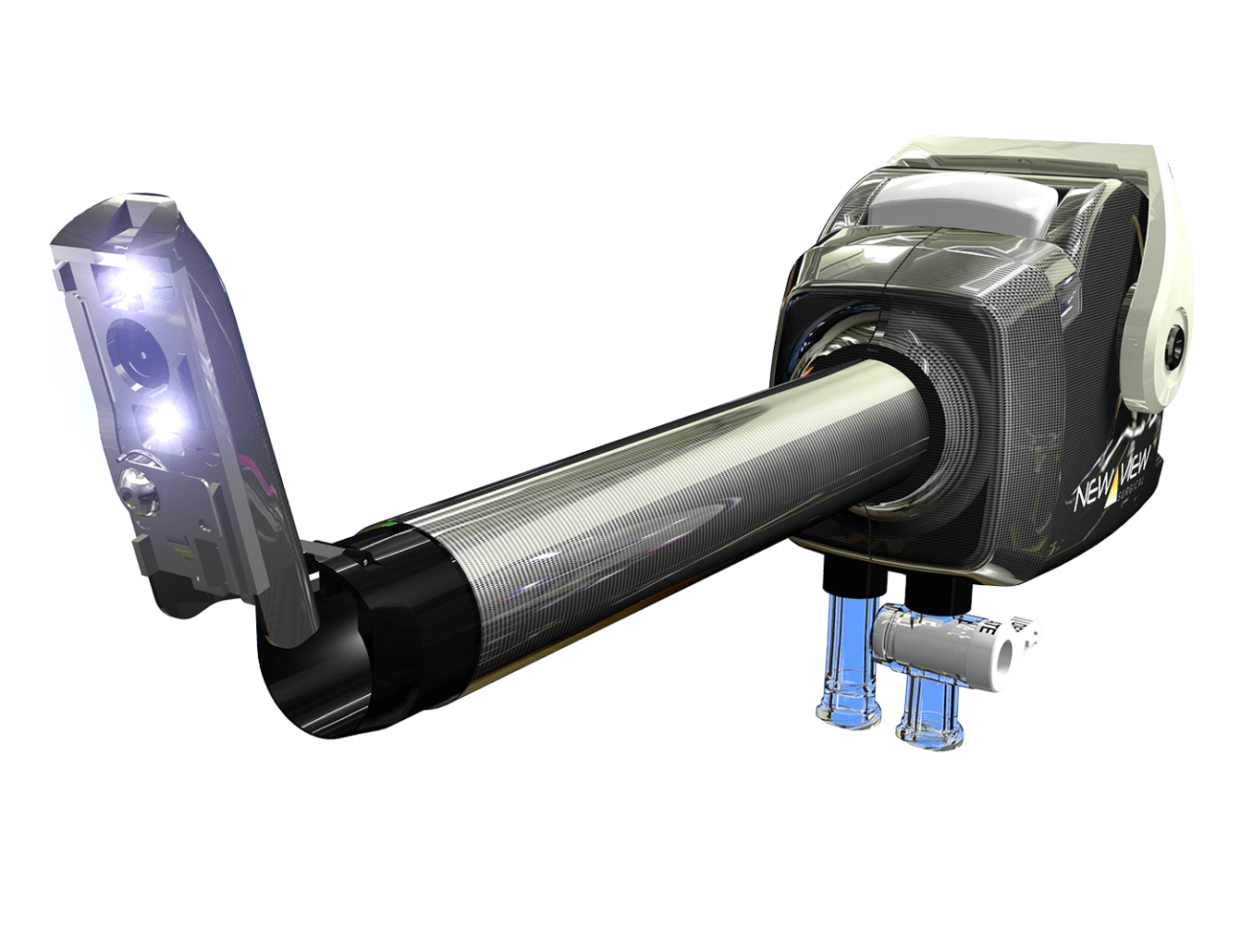

VisionPort™ System Handpiece

  • NVSVP001 Specifications

    VisionPort System Handpiece

    1920 x 1080 (Full HD), 1080p (HDTV) format camera LED light source

    12mm inner diameter

    5-12mm versatile seal

    100mm cannula length

    Integrated lens cleaning wiper

    Integrated anti-fogging design

    C02 line connection port

    Saline source connection port


VisionPort™ System Control Unit

  • NVSCU002 Specifications

    Control Unit

    Connections for 2 VisionPort System Handpieces

    IEC320 Hospital Grade Power Cord

     o  100–120 VAC (0.7–1.0 A) @ 50–60 Hz

     o  IEC 320 Power Inlet Module

    DVI-D connection ports

    3mm audio connector for image capture functionality

    Potential Equalization Connector

    13.75″ W × 4.375″ H × 12.0″ D

    7 lbs

Operators Manual and Instructions for Use

Operator Manual                 View    Download

Quick Reference Guide       View    Download

Instructions for Use             View    Download

VisionPort Handpiece

Indications for Use

The VisionPort™ System is intended to be used in diagnostic and therapeutic procedures for endoscopic surgery within the thoracic and peritoneal cavities including the female reproductive organs to establish a path of entry for endoscopic instruments and to provide an image of the surgical field. The trocar may be used with or without visualization for primary and secondary insertions.


The VisionPort™ System can be used with the following accessories:

24” Sony Medical Monitor

VisionPort System Stand by GCX
